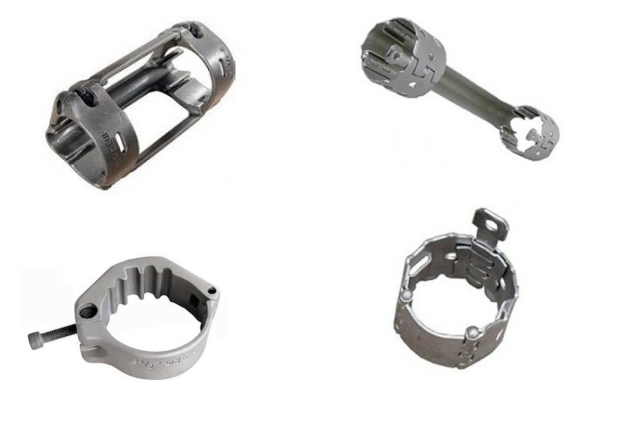

Puyang Zhongshi’s ESP cable protectors are used to protect any configuration of ESP cables, control lines, encapsulated bundles, and etc in wellbore.Protectors use channels to prevent control lines or cables when assembly through tubing coupling. during completion service.
Application:
1. Well Completion service;
2. Artificial Lift;
3. Intelligent Wells
Features:
1. Fit tubing size from 2-3/8" to 5-1/2";
2. Fit various coupling specification.
3. Multi channels can be adopted to protect esp cables and control lines at same time.
4. Carbon Steel and Stainless Steel can satisfy various wellbore.
Main Specification:
| Protector | Type | Tubing Size | Coupling | Cable | Control line |
|
Casting Stamping |
Cross Coupling Mid Joint Banded |
2-3/8” | EUE | #1 FLAT | Φ1/4” |
| 2-7/8” | VAM TOP | #2 FLAT | Φ1/8” | ||
| 3-1/2” | NEW VAM | #3 FLAT | Φ3/8” | ||
| 4” | VAGT | #1 Round | 11x11mm | ||
| 4-1/2” | FOX | #2 Round | … | ||
| 5” | OTIS | #3 Round | |||
| ... | … | … |
